DIN Rail Indicating Controller - Shinko DCL-33A Series

*DIN Rail Indicating Controller - Shinko DCL-33A Series*
Standard Features Space Saving Size Easy to mount even in a small machine because the width is just 22.5mm, height 7.5mm and depth 100 mm.

Dual Use
This instrument is easily switched to controller or transmitter by key operation. When using as a transmitter, the signal or thermocouple input, RTD input or DC input is converted and output to 4 to 20mA DC. The scale is changed easily, too.
(This function is limited only A/• type)

Expandable

It is possible to measure and control ranging from 1 point to a maximum of 31 points using serial communication (RS-485). It is very easy to connect between plural DCl-33A’s, between communication converter and DCL-33A using communication cable CPP and CPM (sold separately).

Easy Mounting And Detaching
Hook this instrument on the DIN rail and mount it. Maintenance is very easy. As it is fixed to the DIN rail, it is vibration proof. When detaching it pull down the hook at the lower part of the main body using flat bladed screwdriver then pull up this instrument.

Large LED Display
PV Red 4 digits 7.5 x 4.1mm (H x W)
SV Green 4 digits 7.5 x 4.1 mm (H x W)

Safety Approvals
UL, cUL and CE Safety Approvals.

True Multi-Input
Units feature full multi-input capability:
1 RTD type, 10 thermocouple types, mA, and V inputs

PID Autotune
Units feature full function third generation PID Autotune.

Warranty
All units manufactured to strict ISO standards and offer full 3 year manufacturers warranty.

Low Cost
Most advanced price/performance package available.

System Configuration (example)

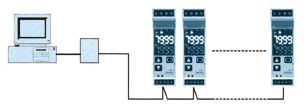

When connecting plural DCL-33A’s to monitor:
When connecting plural DCL-33A’s to monitor:
It is very easy to control and monitor a maximum of 31 points by connecting PC communication with converter. (If the communication specification of PC is RS-485, communication converter is not required.)

When DCL-33A is used as a transmitter:
Various process signals are converted into the insulated 4 to 20mADC in the DCL-33A inner assembly, then 4 to 20mA is outputted. It is possible to monitor multipoint process values by connecting multipoint indicating recorder.
(When DCL-33A is DC current output type, it can be used as a transmitter)

When DCL-33A and a programmable controller are used together:
When DCL-33A and a programmable controller are used together:
It is very easy to control and monitor a maximum of 31 points by connecting PC communication If DCL-33A (with option C5) and Shinko programmable controller (with Option: SVTC) as a program setter are combined, it can be used as a multipoint programmable controller (a maximum of 31 units).
(Setting value digital transmission is possible.)

The DIN Rail Mounting Type Controller features
a full 3 year warranty and lifetime technical support!
